Sizheng two-way voice intercom terminal as an analog intercom, to achieve network intercom must use (access) already has a network intercom system. Take the network camera (with intercom function) as an example, the following Xiaobian tells you how to implement the intercom in the network monitoring system.
The first set of complete monitoring intercom system must include the following hardware
Sizheng intercom terminal, network camera, back-end storage (with intercom client) is generally the host computer (because the Haikang NVR can not achieve voice intercom with the camera) and supporting power supply.

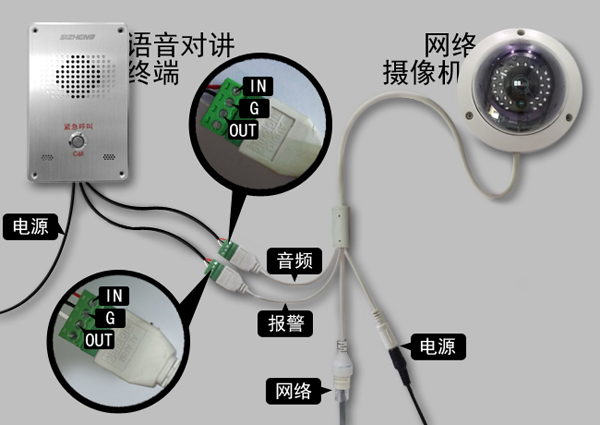

The overall wiring of the front end is as follows:
Sizheng Talkback Terminal → Network Camera → Switch → Backend
Power the equipment separately, but the wiring is OK
We can log in to the backend
Taking a PC as an example, there are two ways for me to implement intercom
1. Use the browser to open the webcam directly to realize the intercom
2. Install the corresponding client (test is iVMS-4200)
One: Use the browser to implement intercom

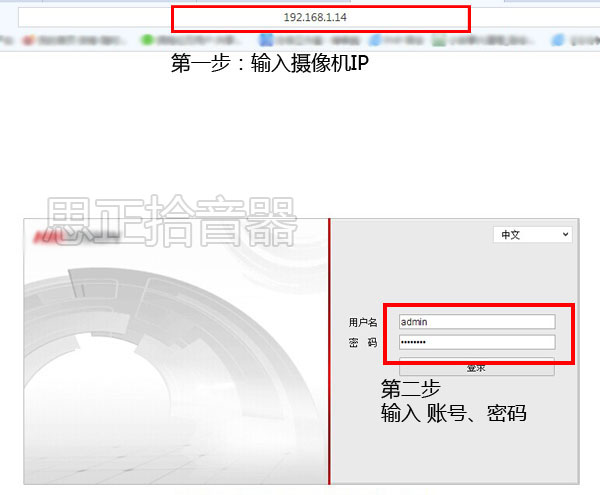

Open browser → enter camera IP address → fill in account password → login

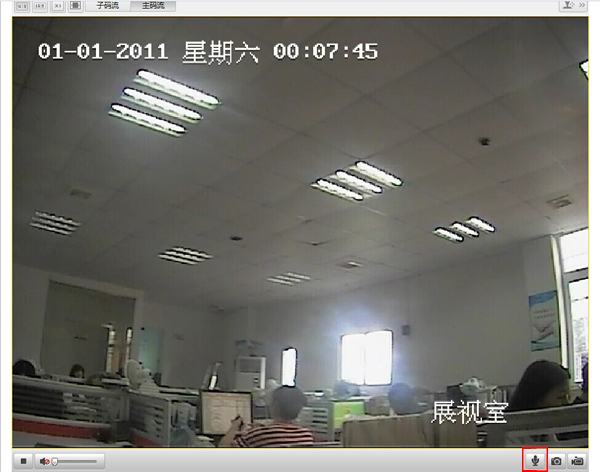

Enter the preview interface, click on the intercom button below to achieve intercom.
Note: The computer must have an omnidirectional microphone with intercom equipment recommended. For a detailed description of the network camera audio, refer to another article, “Examination Method for Testing the Problems of Sizheng Pickupsâ€.
Â
Two: use the client to achieve intercom

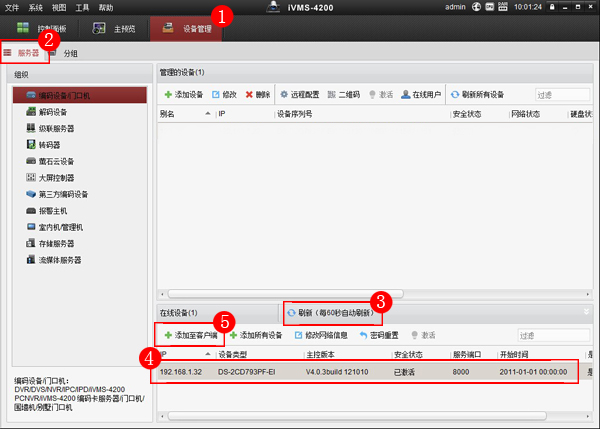

Open iVMS-4200 → enter device management → click on the server → refresh underneath Wait for the device to appear → select device → add client
Add client settings

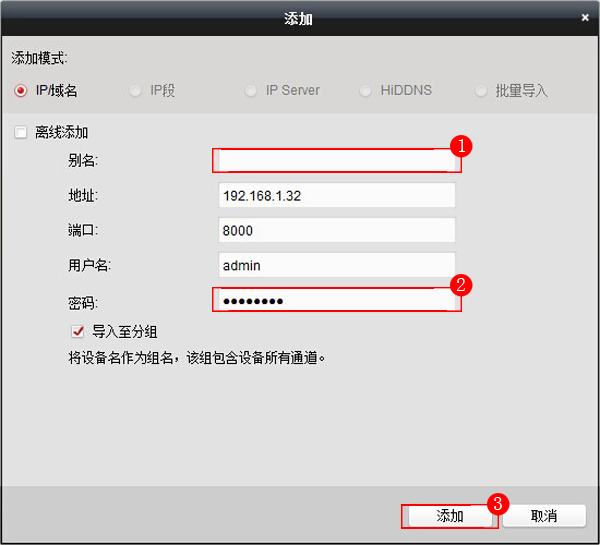

Fill in Alias ​​→ Password → Add

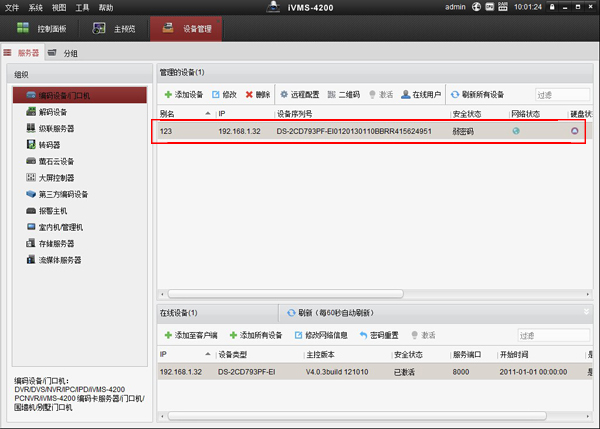

After adding the interface management device, the device you added will appear
Return to the main preview interface right click → start intercom, you can start intercom.
Note: This article tests Haikang products as access devices. Different manufacturers have different settings interface, please configure according to the actual situation ... need remote intercom friend, the intercom system must have a remote function.
